SCOM 2012 R2 – Monitor a Windows Service

In this post I will give detailed instructions on how to monitor a Windows service through SCOM 2012 R2.

For this example I will be creating a monitor to monitor a service called ‘LP360 License Server’ which only occurs on a single server

  1. Within the SCOM console, Navigate to the ‘Authoring’ tab, expand ‘Management Pack Objects’ and select ‘Monitors’SCOM - Authoring Monitors

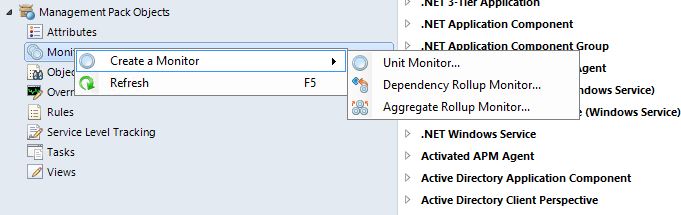

  2. Right click on ‘Monitors’, expand ‘Create a Monitor’ and select ‘Unit Monitor…’SCOM - Authoring Monitors - Create Unit Monitor
  3. Expand ‘Windows Services’ and select ‘Basic Service Monitor’SCOM - Create Unit Monitor - Monitor Type
  4. From the drop-down menu, select the management pack that you wish to place this monitor into. For custom monitors I create a management pack which i have called ‘Service Monitoring’. Then click ‘Next’

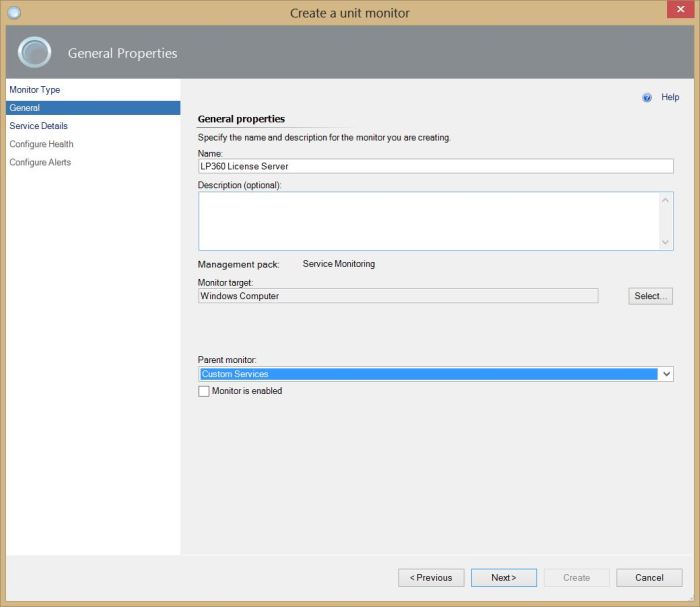

  5. Give your monitor a name that is unique and specific to what you are monitoring, I called mine ‘LP360 License Server’SCOM - Create Unit Monitor - General
  6. Select a monitor target. if this service is specific to an operating system such as Server 2008 R2, then search for and select ‘Windows Server 2008 R2 Computer’ of the Discovery management pack. Otherwise select ‘Windows Computer’ to cover all Windows server and clients. Then click ‘Next’
  7. Select a ‘Parent monitor’ from the drop-down box. for custom monitors I create an Aggregate Rollup Monitor which is called ‘Custom Services’. If you have not got a custom one, select ‘Availability’, it can always be changed later
  8. Because this service is only on one server, I do not want the monitor enabled by default. Untick ‘Montor is enabled’, then click ‘Next’

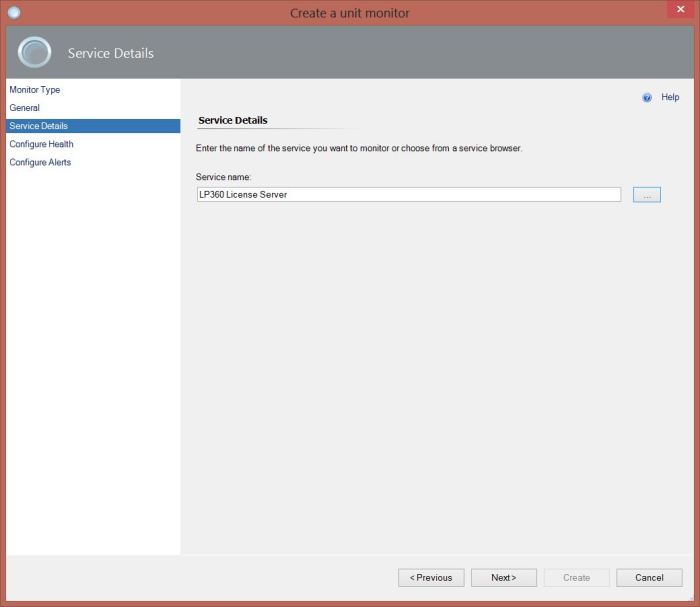

  9. If you are confident of the service name then type it in the box. I strongly suggest clicking on the ‘…’ buttonSCOM - Create Unit Monitor - Service Details

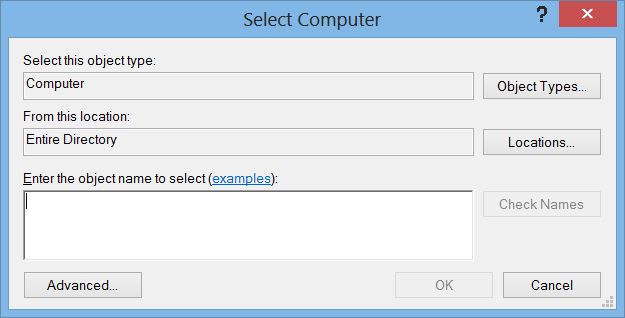

  10. Click ‘…’, type the server name and click ‘OK’SCOM - Create Unit Monitor - Select Windows Service - Select Computer
  11. Locate the service you wish to monitor and click ‘OK’. When you use this method there can be no doubt as to the service nameSCOM - Create Unit Monitor - Select Windows Service
  12. Click ‘Next’
  13. The default health states are fine for monitoring services, so unless you have specific requirements for something different, click ‘Next’SCOM - Create Unit Monitor - Configure Health

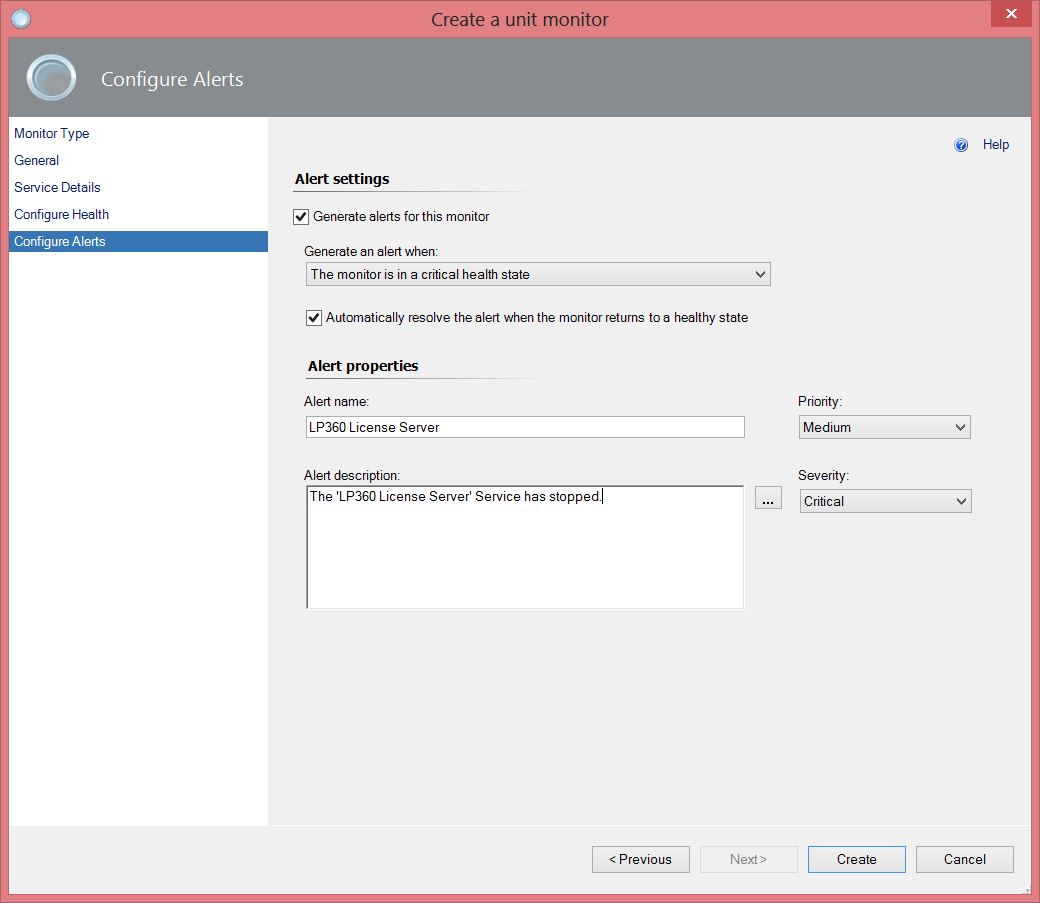

  14. I turn on alerts for all service monitors, select ‘Generate alerts for this monitorSCOM - Create Unit Monitor - Configure Alerts
  15. Change the ‘Alert description’ to something that makes sense for you, mine is ‘The ‘LP360 Server’ Service has stopped.”
  16. Click ‘Create’
  17. Search ‘Monitors’ for your monitor, locate it under ‘Windows Computer’. Right click, expand ‘Overrides’, then ‘Override the Monitor’. Select ‘For a specific object of class: Windows Computer’SCOM - Create Unit Monitor - Search - Override

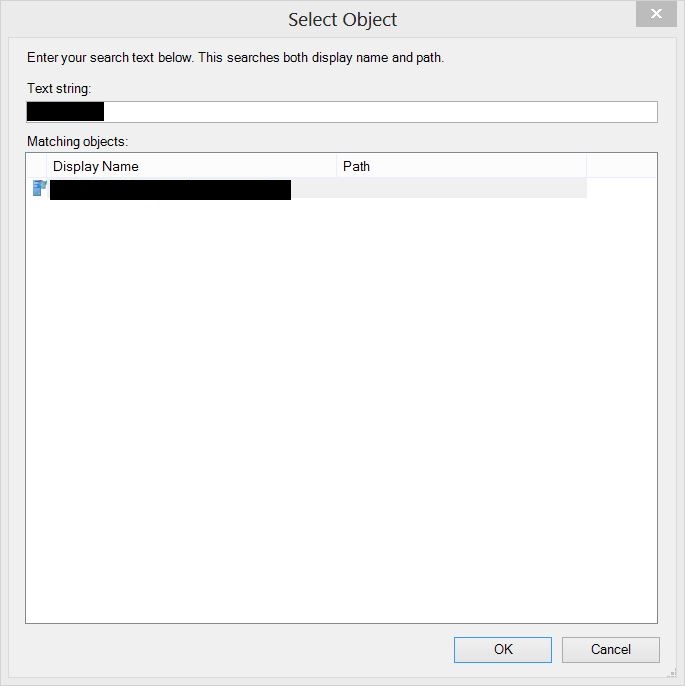

  18. Search for the server that is running the service, select the server and click ‘OK’SCOM - Create Unit Monitor - Override - Select Object
  19. Tick the ‘Override’ box the corresponds to the ‘Enabled’ parameter, then change the ‘Override Value’ to ‘True’. Click ‘OK’SCOM - Create Unit Monitor - Override - Enable

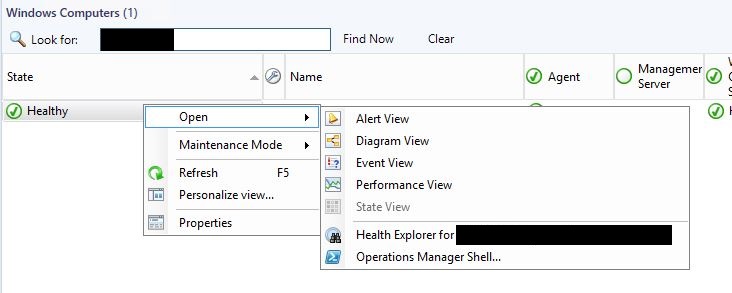

  20. Navigate to the ‘Monitoring’ tab, then select ‘Windows Computers’SCOM - Search for server - Right Click - Open
  21. Search for the server you just created the override for. Right click on the server, expand ‘Open’, select ‘Health Explorer’ for your server

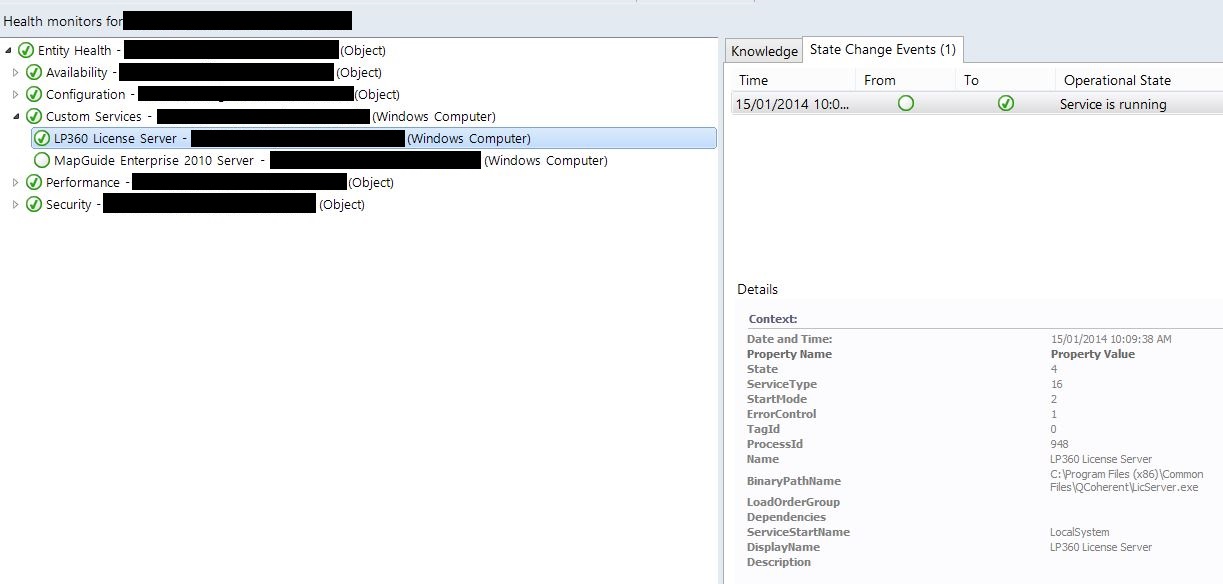

  22. Navigate to where you placed the monitor, in my case it was ‘Custom Services’. Depending on your setup, you may have to clear the filter, it will be a yellow bar at the top of the left paneSCOM - Health Explorer - LP360
  23. Click on State Change Events to confirm when the monitor became active. It could take up to an hour for the monitor to become active. This is dependent on the amount of clients you are monitoring and the performance of your SCOM infrastructure
